Sheet Car Park/yard Roof Making Machine Vertical Type Roof Building Machine K Q Span UBM240 SX-914-610 Arch Roof Steel 15m/min

Product Description

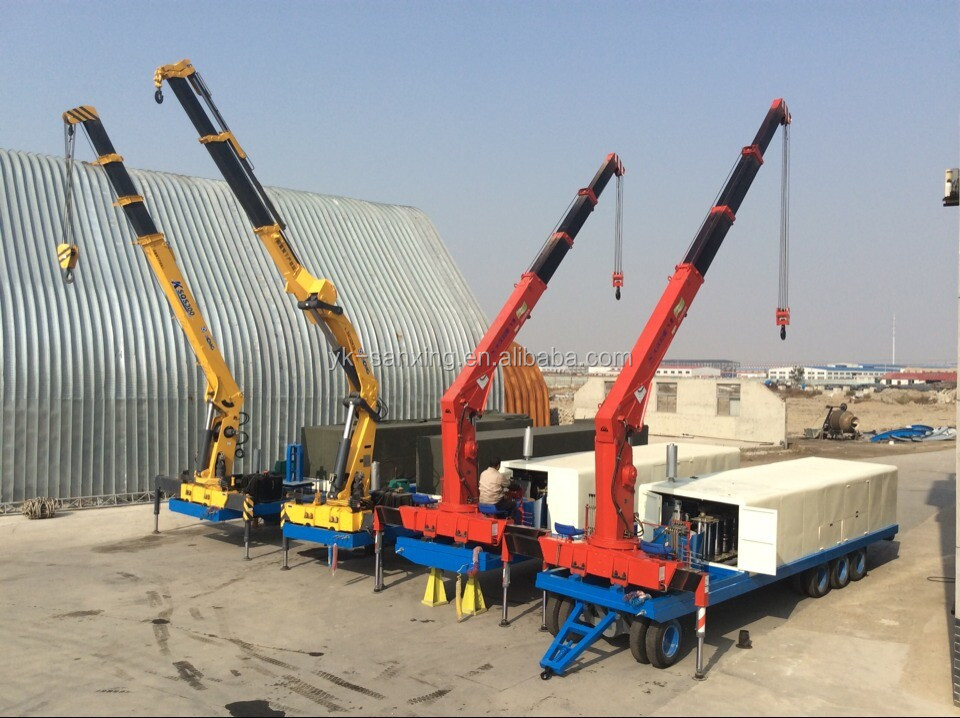

Product Description Note: A crane and a truck can be installed.
The size of the machine with the crane 10000mm × 2230mm × 2300mm
Electrical standard 380V/50HZ/3PHASE
 Material utilization 68%
Suitable for long span  ≤30M/15M
 Total Weight 12000KG
Total power 38 KW
Main motor of forming 7.5 KW*1
Motor for big gear 7.5 KW*1
Motor for small gear 5.5 KW*1
Motor of cutting 4.0KW*1
Motor with reducer for arch sheet 5.5KW*1 +4.0KW*2
Material of rollers  45# steel and 60# steel, quenched HRC 58-62
 Material of roller shafts 45# steel, quenched HRC 58-62
Material of cutting blade Cr12 1 Mov steel
 Material of steel leaves Stainless Steel
Step of rollers 13 steps vertical type
Working Speed: straight part  13m/min; bending: 6-8m/min;seaming:6m/min
Feeding width 1000 mm
Effective width 680  mm
Thickness of the coil  0.8-1.5mm
Control System The Omron PLC and CNC system

Sheet Car Park/yard Roof Making Machine Vertical Type Roof Building Machine K Q Span UBM240 SX-914-610 Arch Roof Steel 15m/minSheet Car Park/yard Roof Making Machine Vertical Type Roof Building Machine K Q Span UBM240 SX-914-610 Arch Roof Steel 15m/min Sheet Car Park/yard Roof Making Machine Vertical Type Roof Building Machine K Q Span UBM240 SX-914-610 Arch Roof Steel 15m/minSheet Car Park/yard Roof Making Machine Vertical Type Roof Building Machine K Q Span UBM240 SX-914-610 Arch Roof Steel 15m/min Sheet Car Park/yard Roof Making Machine Vertical Type Roof Building Machine K Q Span UBM240 SX-914-610 Arch Roof Steel 15m/minSheet Car Park/yard Roof Making Machine Vertical Type Roof Building Machine K Q Span UBM240 SX-914-610 Arch Roof Steel 15m/minSheet Car Park/yard Roof Making Machine Vertical Type Roof Building Machine K Q Span UBM240 SX-914-610 Arch Roof Steel 15m/minSheet Car Park/yard Roof Making Machine Vertical Type Roof Building Machine K Q Span UBM240 SX-914-610 Arch Roof Steel 15m/minSheet Car Park/yard Roof Making Machine Vertical Type Roof Building Machine K Q Span UBM240 SX-914-610 Arch Roof Steel 15m/min   Producible Shapes of Building Other Alternative Model Sheet Car Park/yard Roof Making Machine Vertical Type Roof Building Machine K Q Span UBM240 SX-914-610 Arch Roof Steel 15m/min   Free Accessories    Sheet Car Park/yard Roof Making Machine Vertical Type Roof Building Machine K Q Span UBM240 SX-914-610 Arch Roof Steel 15m/min  Packaging & Shipping     We can put the machine in a 40 feet high container, and transport to the port which you designated by sea.   Our Services About Guarantee     We provide 10 years guarantee for some parts of machine.   About Design     We can design projects for free according to your requirements, and provide drawings.   About Training     If you send the technicians to our factory to study, we will provide training, accommodation, meals and local traffic expense.     If you need technicians we send to your country to train, you should provide expenses of visa, accommodation, meals, round-trip tickets, local traffic and 100 dollars wages per day for everyone. Engineering Cases Sheet Car Park/yard Roof Making Machine Vertical Type Roof Building Machine K Q Span UBM240 SX-914-610 Arch Roof Steel 15m/min  Recent Customers Sheet Car Park/yard Roof Making Machine Vertical Type Roof Building Machine K Q Span UBM240 SX-914-610 Arch Roof Steel 15m/min  Company Information     Yingkou Sanxing Group is located in Yingkou city, Liaoning province, China since 1992. We are a manufacturer which design and manufacture various kinds of Cold Roll Forming Machine, we are also a supplier for lots of Chinese trading company and manufacturer.     Our main products include ultimate construction machine, automatic construction machine, screw joint Roll Forming Machine, spiral steel silo roll forming machine, KR standing seam roll forming machine, flat steel sheet roll forming machine, Deck Floor Roll Forming Machine, Sandwich Panel roll forming machine, C/Z shape steel purlin roll forming machine, Light Steel Frame Roll Forming Machine, rolling door roll forming machine, etc.     Our products have sold to various countries in the world. We warm welcome customers from all over the world to visit our company. Sheet Car Park/yard Roof Making Machine Vertical Type Roof Building Machine K Q Span UBM240 SX-914-610 Arch Roof Steel 15m/min

Contact us if you need more details on Roof Making Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Roof Building Machine、Arch Roof Forming Machinery. If these products fail to match your need, please contact us and we would like to provide relevant information.
