SABM SX-1000-680 Hydraulic Quick Assembly Swimming Pools Forming and Curving Machine Making Machine Roofing Metal Roof Steel
Product Description
Product Description

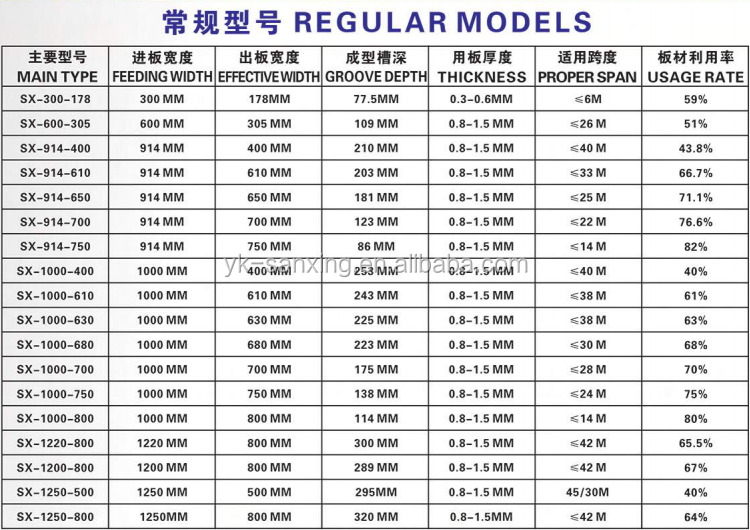

Other Alternative Model
Free Accessories
Packaging & Shipping We can put the machine in a 40 feet high container, and transport to the port which you designated by sea. Engineering Cases
Our Services About Guarantee We provide 10 years guarantee for some parts of machine. About Design We can design projects for free according to your requirements, and provide drawings. About Training If you send the technicians to our factory to study, we will provide training, accommodation, meals and local traffic expense. If you need technicians we send to your country to train, you should provide expenses of visa, accommodation, meals, round-trip tickets, local traffic and 100 dollars wages per day for everyone. Recent Customers
Company Information Yingkou Sanxing Group is located in Yingkou city, Liaoning province, China since 1992. We are a manufacturer which design and manufacture various kinds of Cold Roll Forming Machine, we are also a supplier for lots of Chinese trading company and manufacturer. Our main products include ultimate construction machine, automatic construction machine, screw joint Roll Forming Machine, spiral steel silo roll forming machine, KR standing seam roll forming machine, flat steel sheet roll forming machine, Deck Floor Roll Forming Machine, Sandwich Panel roll forming machine, C/Z shape steel purlin roll forming machine, Light Steel Frame Roll Forming Machine, rolling door roll forming machine, etc. Our products have sold to various countries in the world. We warm welcome customers from all over the world to visit our company.
Contact us if you need more details on Abm Forming And Curving Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Tile Making Machinery、Roof Steel Making Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
| The size of the machine with the crane | 10000mm × 2230mm × 2300mm |
| Electrical standard | 380V/50HZ/3PHASE |
| Material utilization | 68% |
| Suitable for long span | ≤30M/15M |
| Total Weight | 12000KG |
| Total power | 38 KW |
| Main motor of forming | 7.5 KW*1 |
| Motor for big gear | 7.5 KW*1 |
| Motor for small gear | 5.5 KW*1 |
| Motor of cutting | 4.0KW*1 |
| Motor with reducer for arch sheet | 5.5KW*1 +4.0KW*2 |
| Material of rollers | 45# steel and 60# steel, quenched HRC 58-62 |
| Material of roller shafts | 45# steel, quenched HRC 58-62 |
| Material of cutting blade | Cr12 1 Mov steel |
| Material of steel leaves | Stainless Steel |
| Step of rollers | 13 steps vertical type |
| Working Speed: straight part | 13m/min; bending: 6-8m/min;seaming:6m/min |
| Feeding width | 1000 mm |
| Effective width | 680 mm |
| Thickness of the coil | 0.8-1.5mm |
| Control System | The Omron PLC and CNC system |
Other Alternative Model Free Accessories Packaging & Shipping We can put the machine in a 40 feet high container, and transport to the port which you designated by sea. Engineering Cases Our Services About Guarantee We provide 10 years guarantee for some parts of machine. About Design We can design projects for free according to your requirements, and provide drawings. About Training If you send the technicians to our factory to study, we will provide training, accommodation, meals and local traffic expense. If you need technicians we send to your country to train, you should provide expenses of visa, accommodation, meals, round-trip tickets, local traffic and 100 dollars wages per day for everyone. Recent Customers Company Information Yingkou Sanxing Group is located in Yingkou city, Liaoning province, China since 1992. We are a manufacturer which design and manufacture various kinds of Cold Roll Forming Machine, we are also a supplier for lots of Chinese trading company and manufacturer. Our main products include ultimate construction machine, automatic construction machine, screw joint Roll Forming Machine, spiral steel silo roll forming machine, KR standing seam roll forming machine, flat steel sheet roll forming machine, Deck Floor Roll Forming Machine, Sandwich Panel roll forming machine, C/Z shape steel purlin roll forming machine, Light Steel Frame Roll Forming Machine, rolling door roll forming machine, etc. Our products have sold to various countries in the world. We warm welcome customers from all over the world to visit our company. Contact us if you need more details on Abm Forming And Curving Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Tile Making Machinery、Roof Steel Making Machine. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : Hydraulic ACM Beamless Machine > Hydraulic ACM Beamless Machine
